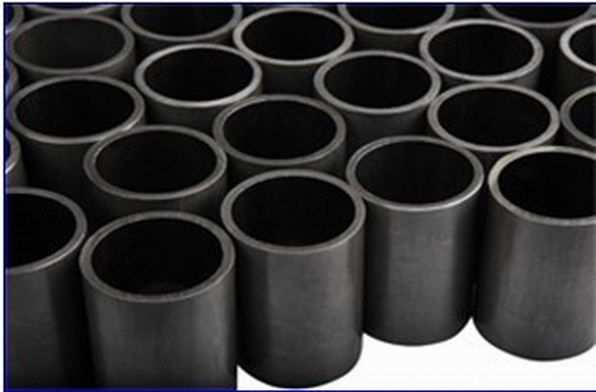

EN10305-1£º Cold Drawn/Cold Rolled Precision Seamless Steel Tubes
SIZE: OD4-300mm, WT1-30mm.
EN10305-2£º Cold Drawn/Cold Rolled Precision Welded Steel Tubes
SIZE: OD10-150mm, WT0.5-7.0mm.
Steel Grade and Chemical Composition ( % )
Steel Grade |
Chemical Composition ( % ) |
C max |
Si max |
Mn max |
P max |
S max |
Al min |
E215 |
0.10 |
0.35 |
0.70 |
0.025 |
0.025 |
0.025 |
E235 |
0.17 |
0.35 |
1.20 |
0.025 |
0.025 |
|
E355 |
0.22 |
0.55 |
1.60 |
0.025 |
0.025 |
|
Mechanical Properties ( Mpa )
Steel Grade |
Mechanical Properties ( Mpa ) |
C |
LC |
SR |
A |
N |
Rm |
Elongation |
Rm |
Elongation |
Rm |
ReH |
Elongation |
Rm |
Elongation |
Rm |
ReH |
Elongation |
|
|
|
|
|
|
|
|
|
|
|
|
N/mm2 |
% |
N/mm2 |
% |
N/mm2 |
N/mm2 |
% |
N/mm2 |
% |
N/mm2 |
N/mm2 |
% |
|
|
|
|
|
|
|
|
|
|
|
|
min |
Min |
min |
Min |
min |
min |
Min |
min |
Min |
min |
min |
Min |
E215 |
430 |
8 |
380 |
12 |
380 |
280 |
16 |
280 |
30 |
290-430 |
215 |
30 |
E235 |
580 |
6 |
420 |
10 |
420 |
350 |
16 |
315 |
25 |
340-480 |
235 |
25 |
E355 |
640 |
4 |
580 |
7 |
580 |
450 |
10 |
450 |
22 |
490-630 |
355 |
22 | |
